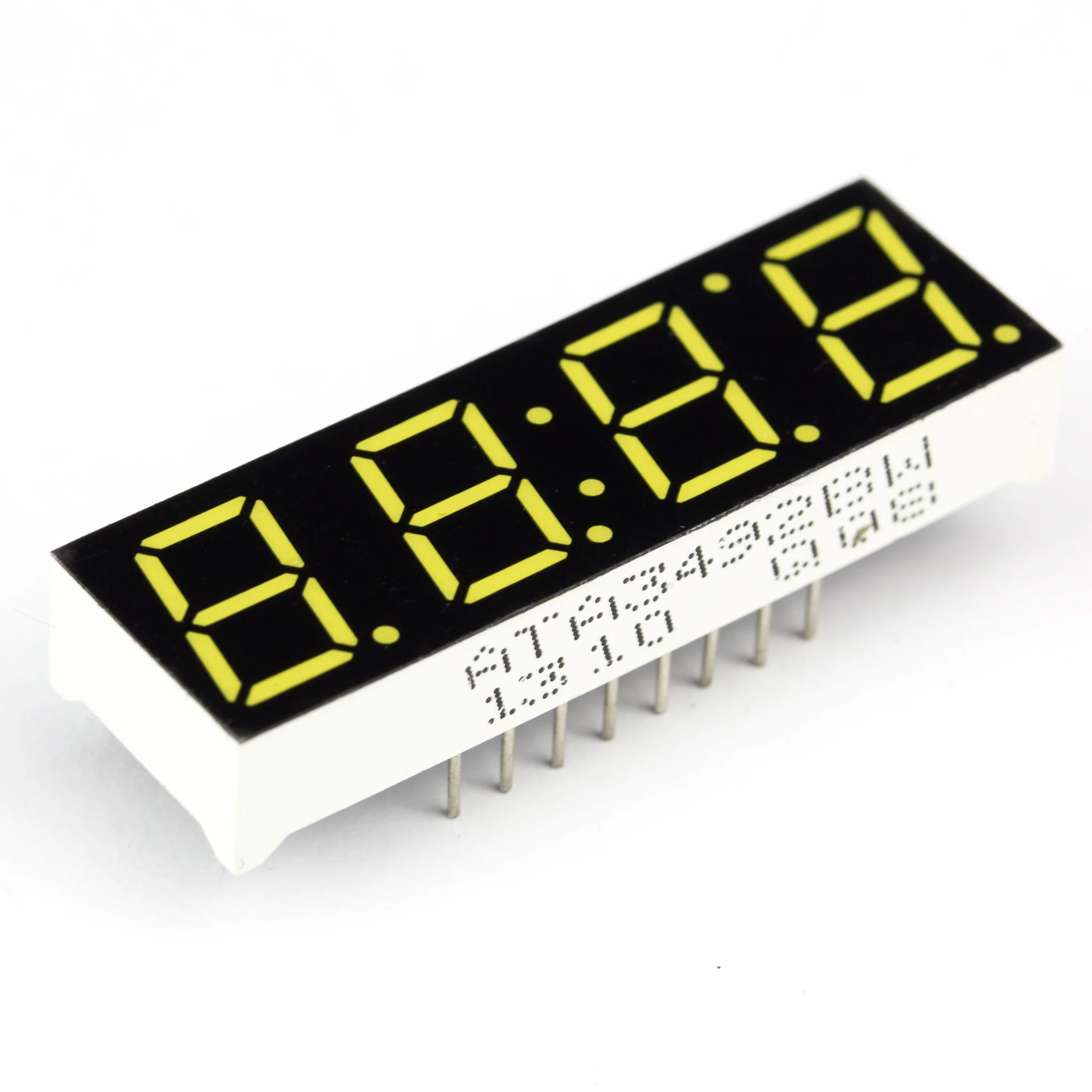

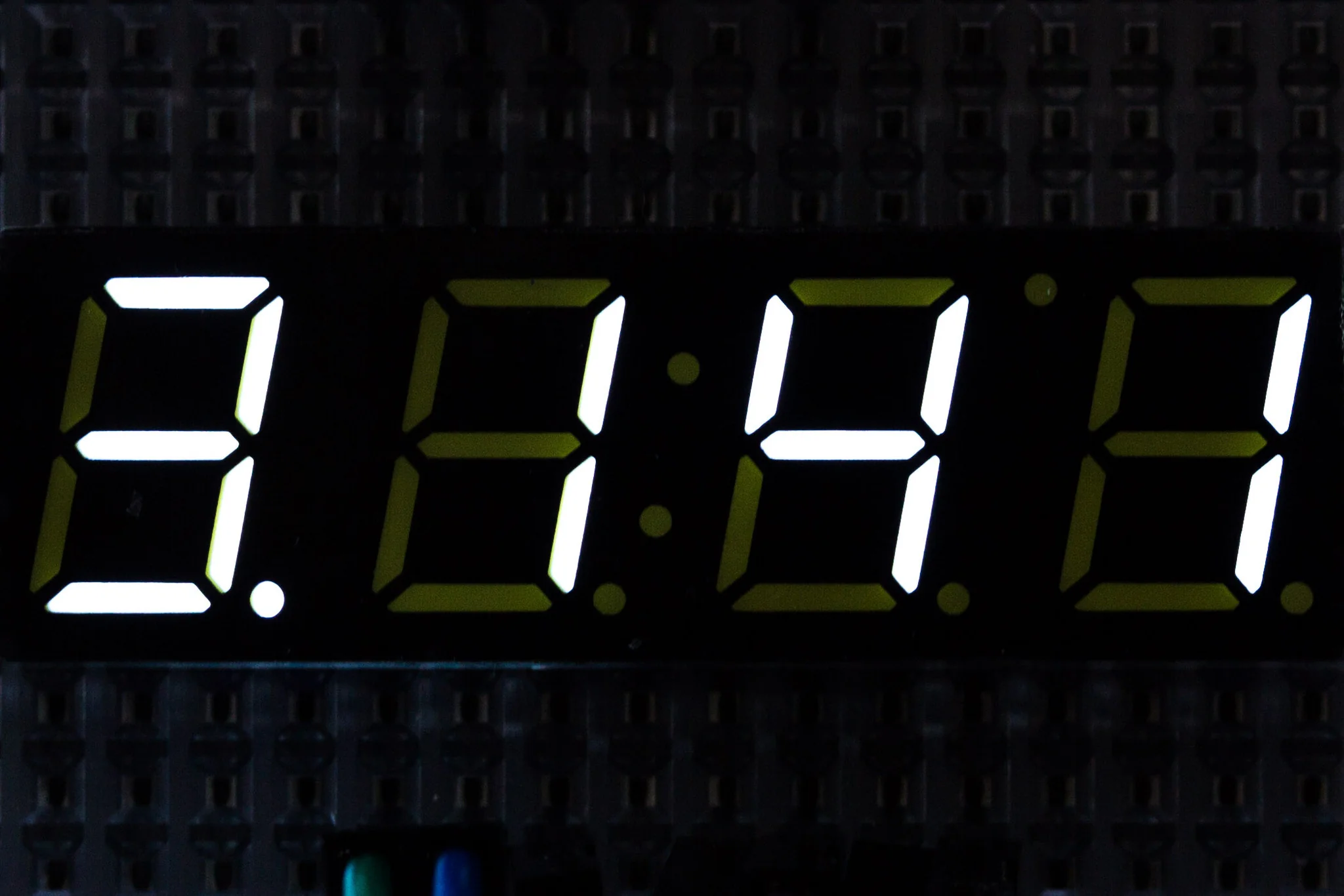

4 Digit 7 Segment Display
Ideal for clocks and timers these displays will really light up your project
Available in four colours this common anode display has 16 through hole pins to control 4 7-segment displays with one decimal place per digit, an apostrophe and colon points.
| Colour | Blue | Yellow | Red | Green | White |
|---|---|---|---|---|---|
| Wavelength | 460-465 nm | 588-295 nm | 620-630 nm | 570-573 nm | |
| IV | 150-250 mcd | 50-60 mcd | 400-450 mcd | 50-60 mcd | 150-180 mcd |
| VF | 3.2V - 3.5V | 2.0V - 2.2V | 1.9V -2.1V | 1.9V - 2.3V | 3.29V - 3.4V |
| Datasheet | Datasheet | Datasheet | Datasheet | Datasheet | Datasheet |
Note: The datasheet for the white display says “blue” but that’s because the white display is simply a blue display with a colored film over it.
Original: $2.31
-70%$2.31
$0.69Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Ideal for clocks and timers these displays will really light up your project
Available in four colours this common anode display has 16 through hole pins to control 4 7-segment displays with one decimal place per digit, an apostrophe and colon points.
| Colour | Blue | Yellow | Red | Green | White |
|---|---|---|---|---|---|
| Wavelength | 460-465 nm | 588-295 nm | 620-630 nm | 570-573 nm | |
| IV | 150-250 mcd | 50-60 mcd | 400-450 mcd | 50-60 mcd | 150-180 mcd |
| VF | 3.2V - 3.5V | 2.0V - 2.2V | 1.9V -2.1V | 1.9V - 2.3V | 3.29V - 3.4V |
| Datasheet | Datasheet | Datasheet | Datasheet | Datasheet | Datasheet |
Note: The datasheet for the white display says “blue” but that’s because the white display is simply a blue display with a colored film over it.
