8-Angle Unit with Potentiometer

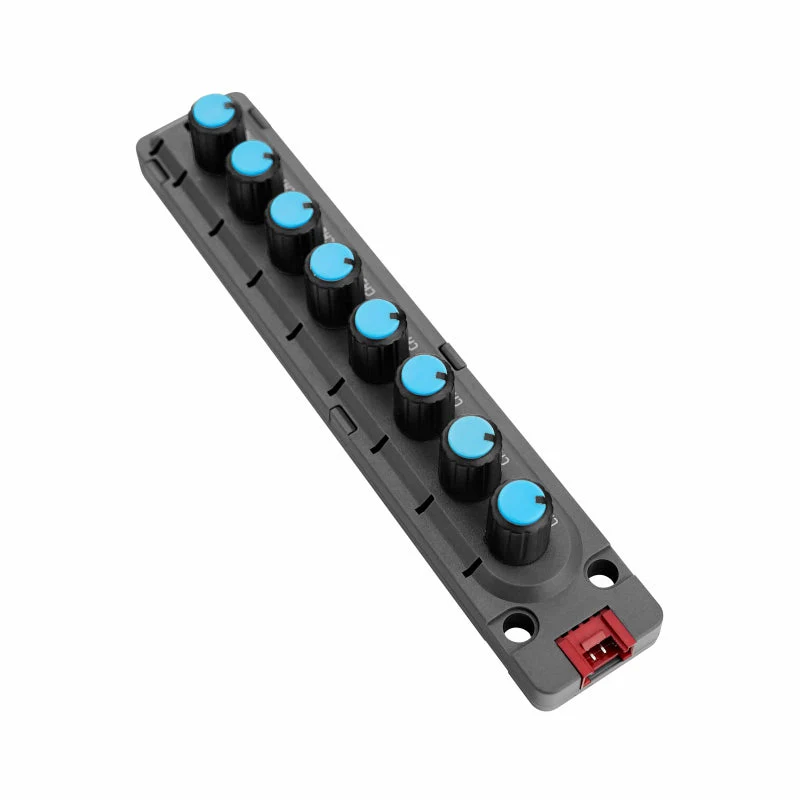

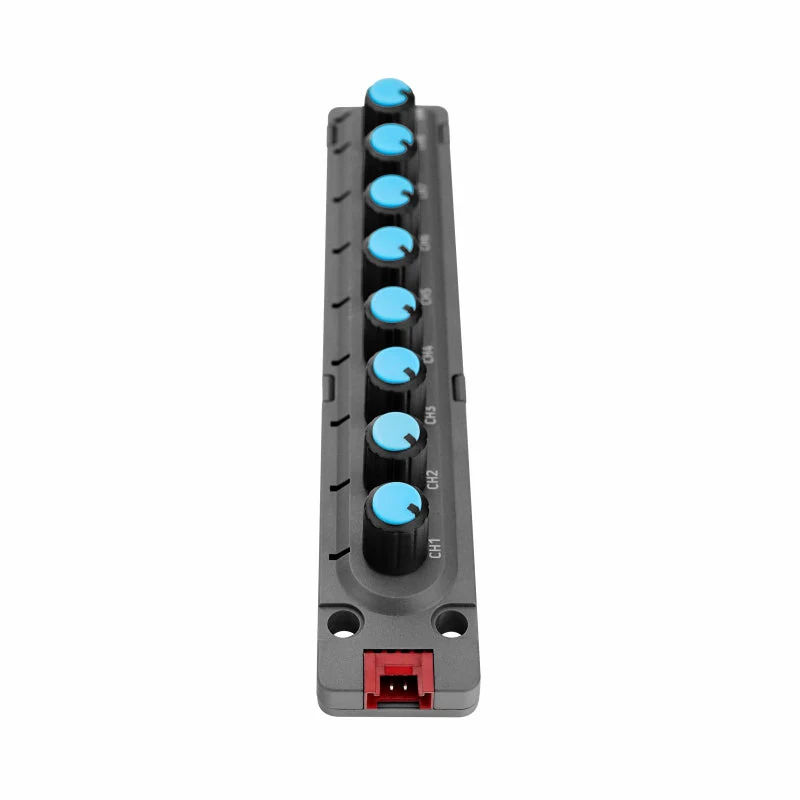

UNIT 8Angle is an input unit integrating 8 adjustable potentiometers, with an internal STM32F030 microcomputer as acquisition and communication processor

The host computer adopts I2C communication interface, each adjustable potentiometer corresponds to 1 RGB LED light, and there is also a physical toggle switch and its corresponding RGB LED light, containing 5V->3V3 DCDC circuit. The unit can be used for multi-channel absolute control value input, the corresponding RGB lamp can display different states, and the toggle switch can be used for multi-channel switching input. Can be used as a multi-degree-of-freedom robot or an application in music equalization.

Features

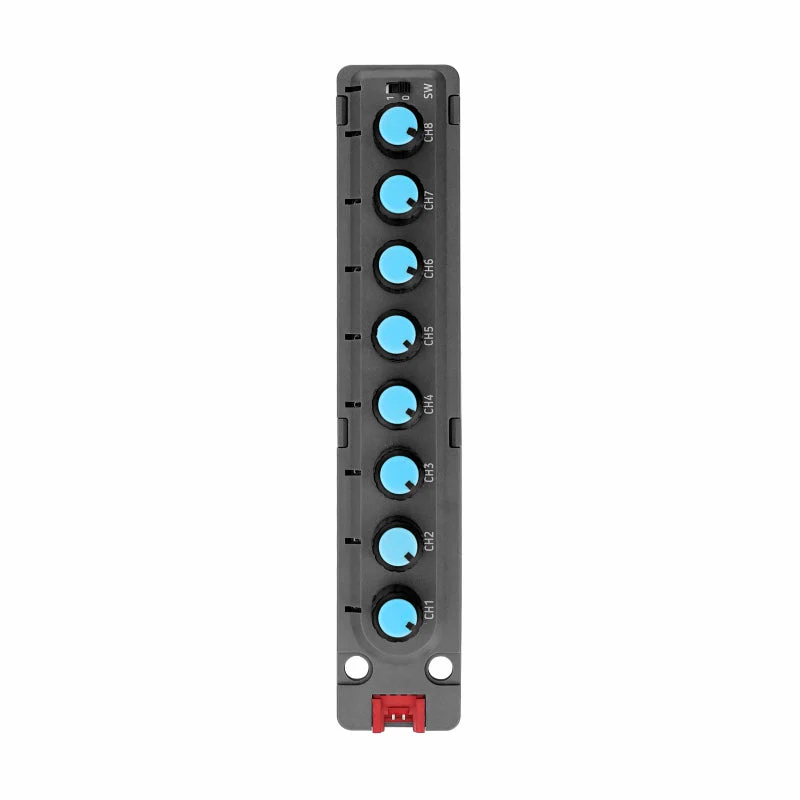

• 8-channel adjustable potentiometer
• 8 channels correspond to RGB lights
• I2C communication
• Toggle switches can be used for multi-channel switching inputs

Includes

• 1x 8Angle Unit
• 1x HY2.0-4P Cable(5cm)

Applications

• Multi-degree-of-freedom robot joint control
• Music equalization control aspects

Specification

Resources	Parameters
MCU	STM32F030F4P6
LDO	ME6210A33M3G
RGB	SK6812-3535
Input voltage	5v

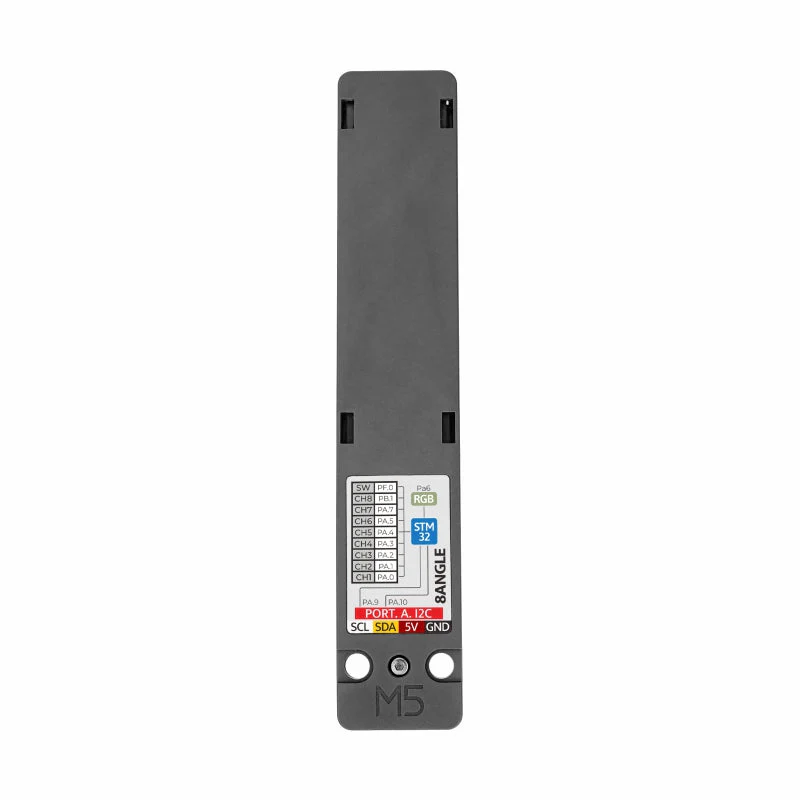

I2C communication address	0x43
Product Size	128mm x 24mm x 22.7mm
Package Size	130mm x 27.7mm x 27.7mm
Product Weight	34.9g
Package Weight	44.3g

Documentation

• STM32F030F4P6
• LDO:ME6210A33M3G
• Schemtics and Examples
