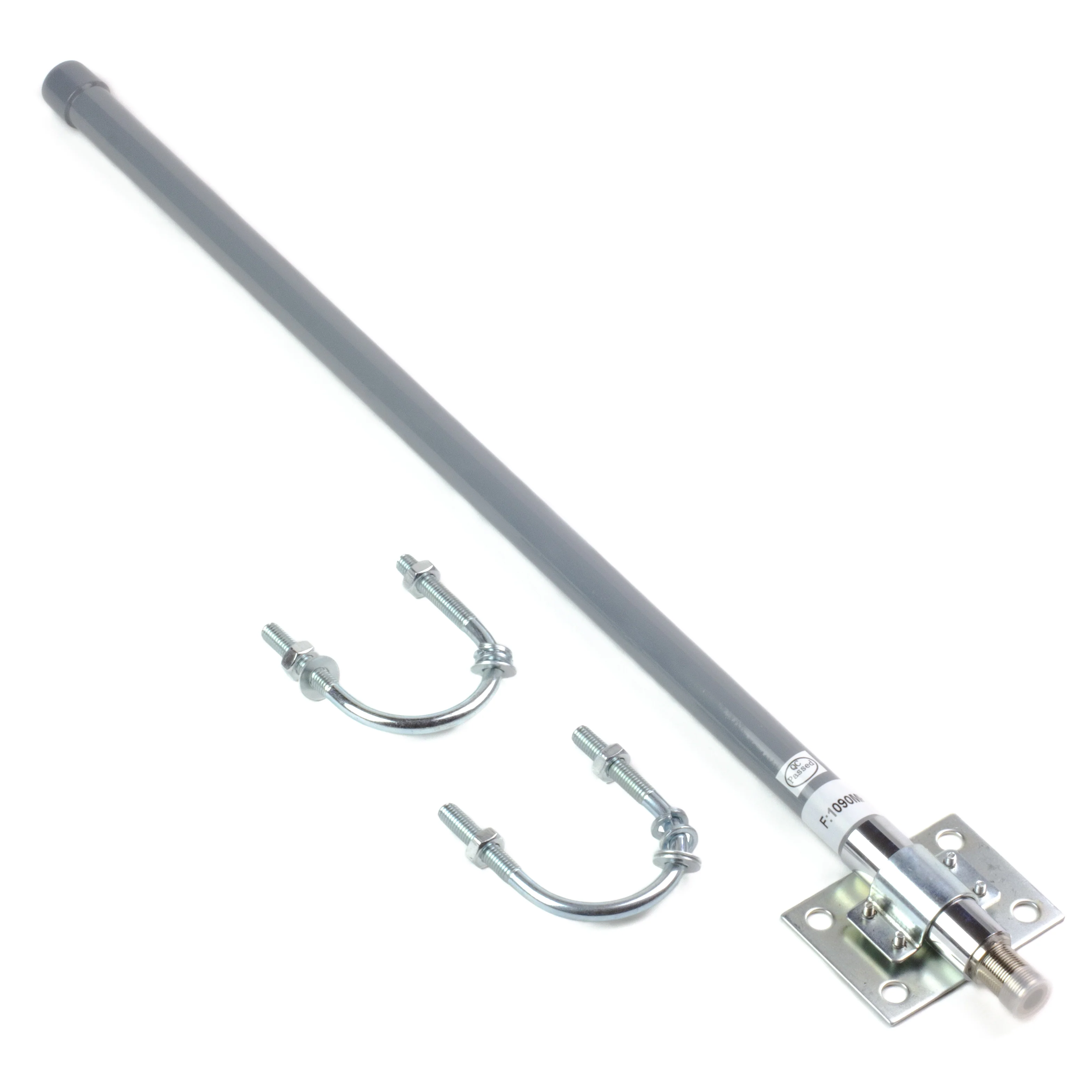

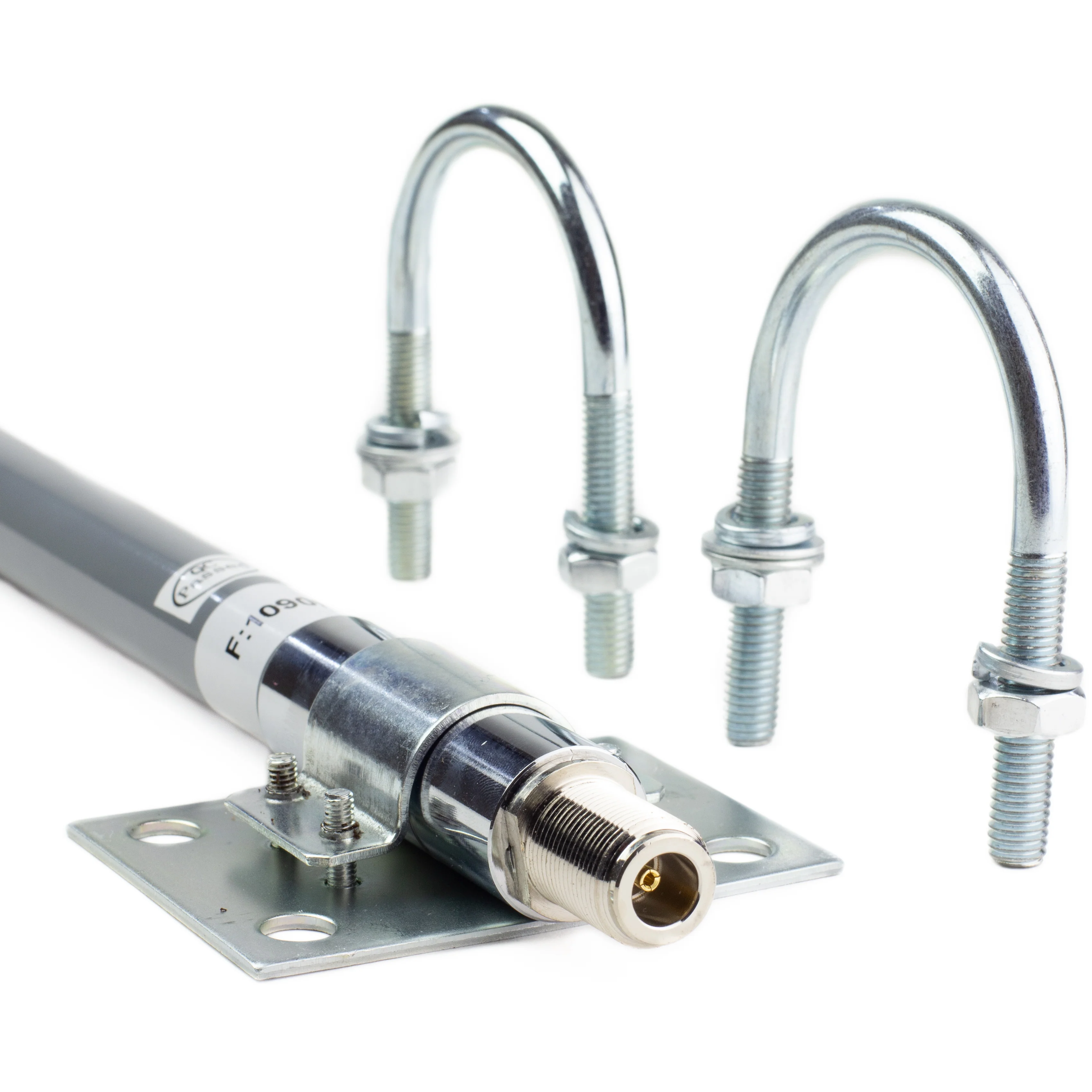

ADS-B 1090 MHz Antenna (0.6m, 5.5dBi)
Step up your plane-tracking game with this sturdy 0.6m fibreglass antenna (5.5dBi gain), tuned specifically to pick up 1090MHz ADS-B transmissions from planes!
Pair this antenna with a type-N to SMA cable (male to male) and one of our FlightAware plane-tracking sticks then join the FlightAware community, the world's largest flight-tracking and data platform.
Specifications
| Electrical | |
| Frequency | 1060-1120MHz |
| Bandwidth | 60MHz |
| Gain | 5.5dBi |
| Horizontal beam width | 360° |
| Vertical beam width | 28° |
| VSWR | ≤1.5 |
| Power handling | 100W |
| Impedance | 50 Ohms |
| Mechanical | |
| Length | 0.6m |
| Weight | 0.6kg |
| Connector | Type-N female |
| Mount style | Pole mount (clamps and mounting plate included) |
| Colour | Grey |
| Environmental | |
| Wind resistance | 100km/h |
| Temperature range | -40°C to 60°C |
Original: $27.39
-70%$27.39
$8.22Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Step up your plane-tracking game with this sturdy 0.6m fibreglass antenna (5.5dBi gain), tuned specifically to pick up 1090MHz ADS-B transmissions from planes!
Pair this antenna with a type-N to SMA cable (male to male) and one of our FlightAware plane-tracking sticks then join the FlightAware community, the world's largest flight-tracking and data platform.
Specifications
| Electrical | |
| Frequency | 1060-1120MHz |
| Bandwidth | 60MHz |
| Gain | 5.5dBi |
| Horizontal beam width | 360° |
| Vertical beam width | 28° |
| VSWR | ≤1.5 |
| Power handling | 100W |
| Impedance | 50 Ohms |
| Mechanical | |
| Length | 0.6m |
| Weight | 0.6kg |
| Connector | Type-N female |
| Mount style | Pole mount (clamps and mounting plate included) |
| Colour | Grey |
| Environmental | |
| Wind resistance | 100km/h |
| Temperature range | -40°C to 60°C |
