Fermion: Voice Recorder Module

Wanna buy a simple and practical voice recorder, which can be used stand-alone as well as connected to a controller? This one is right for you!

The voice recorder module supports 4 controlling modes (Arduino, AT command, on-board buttons, and ADKEY), and multi-segment voice recording. You can directly press the on-board buttons to record or play voice without using a controller. The 16MB storage on the module can store up to 40 minutes of voice recording and the recorded files can be copied to your computer via the USB-C interface.

FEATURES

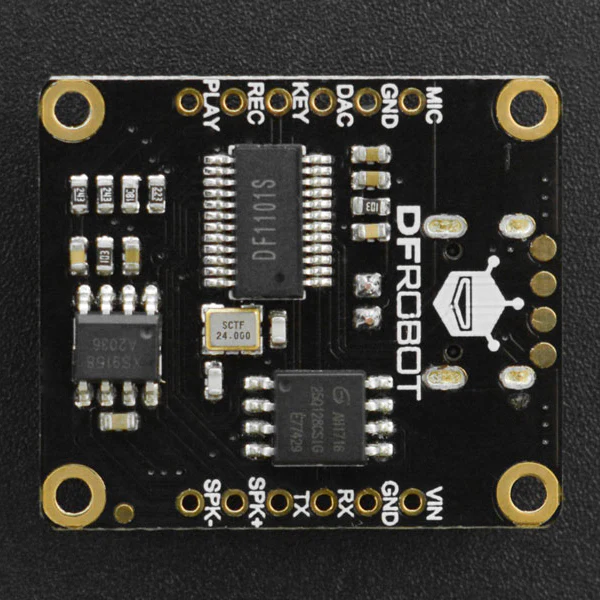

• DF1101S voice recording and playing chip with 48kbs sampling rate
• On-board power mono amplifier (HX8358)
• USB-C
• Supports about 40 minutes voice recording
• Supports multi-segment voice recording
• Voice recording/playing via on-board buttons
• Supports analog U-disk


APPLICATIONS

• DIY Plush Toys
• Handmade Personalized Gift
• Event Voice Memo

SPECIFICATION

Operating Voltage	3.3~5V
Operating Current	>10mA
Storage	16MB
Sampling Rate	48kbs
Communication	UART

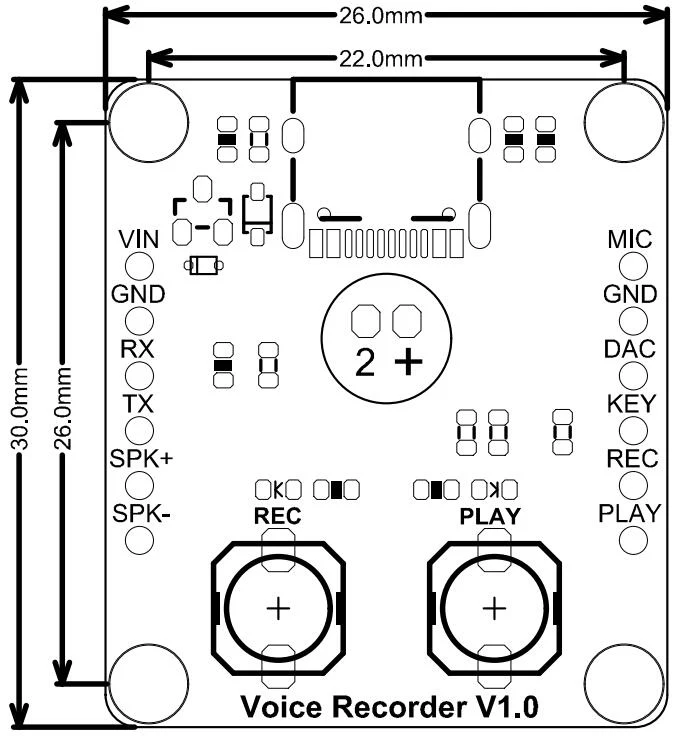

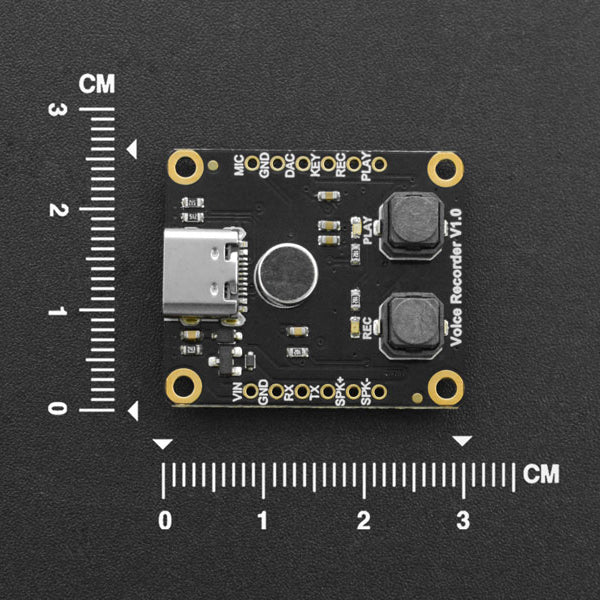

Dimension	26 x 30 mm / 1.02 x 1.18”

DOCUMENTS

• Product wiki

SHIPPING LIST

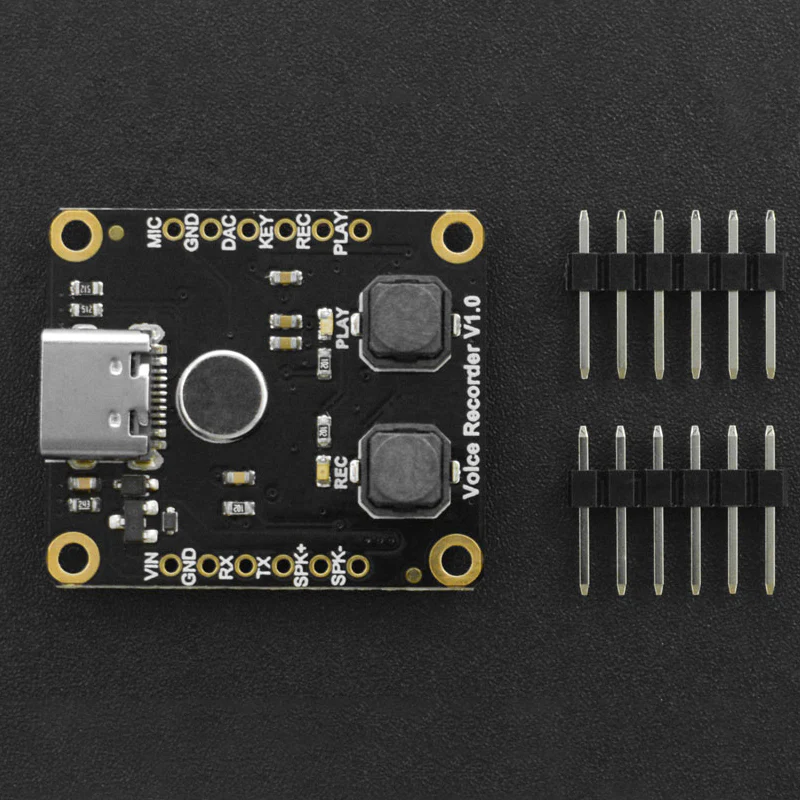

• Voice Recorder Module-Breakout x1
• 2.54-6P Single-Row-Pin Black x2
