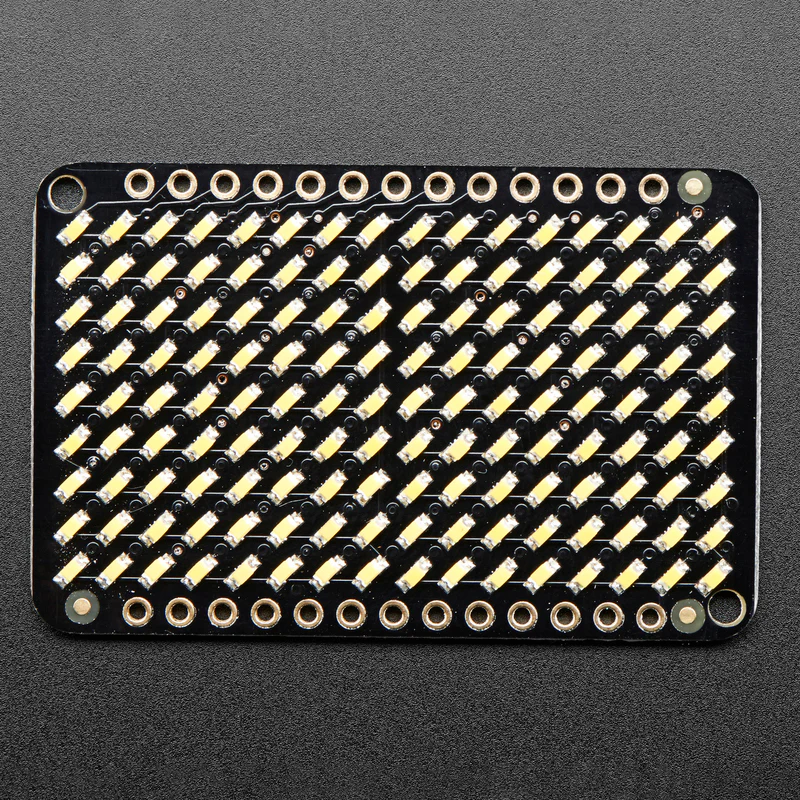

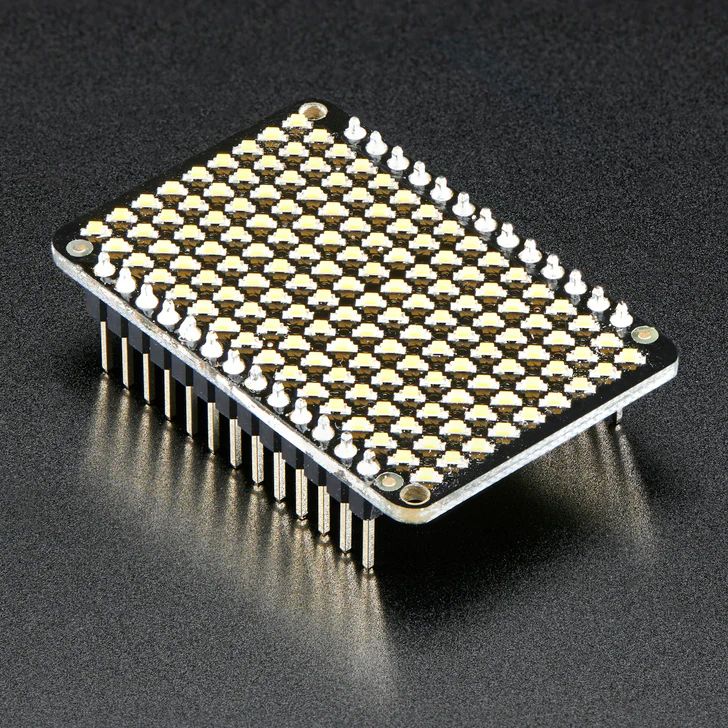

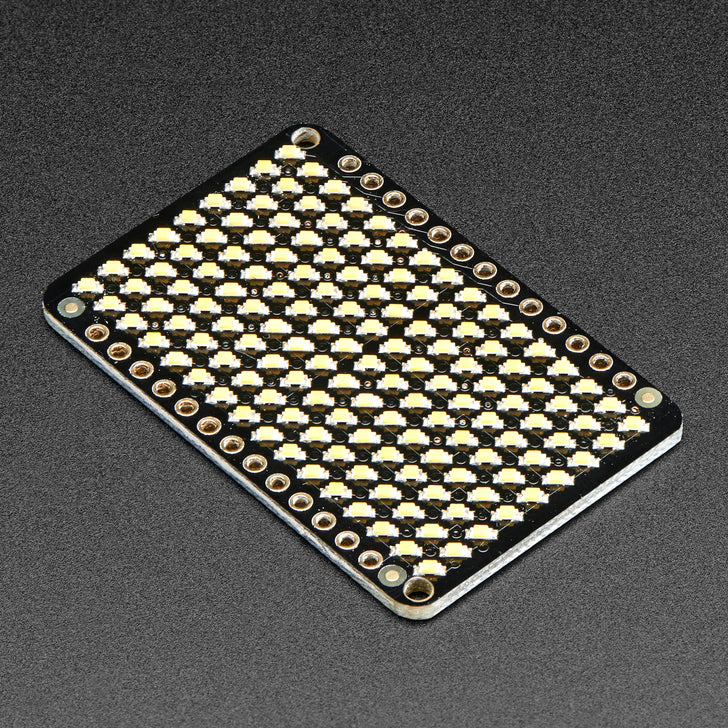

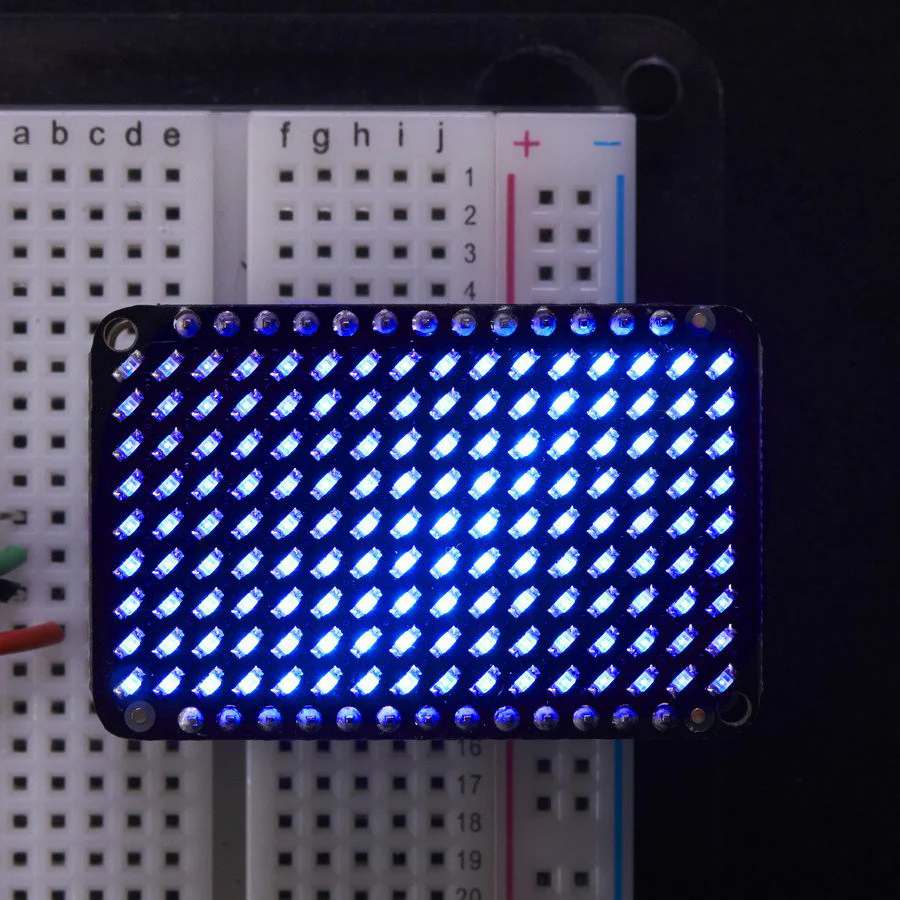

Adafruit LED Charlieplexed Matrix - 9x16 LEDs
These are 9x16 Charlieplexed LEDs designed to match with the Adafruit 16x9 Charlieplexed PWM LED Matrix Driver - IS31FL3731.
You don't get any resistors or driver chips with this grid, its just a mess of LEDs in a charlieplexed arrangement
Check out the detailed tutorial for Arduino & CircuitPython support, pinouts, assembly, wiring, and more!
Technical Details
- Datasheets, EagleCAD PCB files, Fritzing objects and more in the tutorial
Product Dimensions: 43.3mm x 28.1mm x 2.4mm / 1.7" x 1.1" x 0.1"
Product Weight: 5.7g / 0.2oz
Original: $6.60
-70%$6.60
$1.98Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
These are 9x16 Charlieplexed LEDs designed to match with the Adafruit 16x9 Charlieplexed PWM LED Matrix Driver - IS31FL3731.
You don't get any resistors or driver chips with this grid, its just a mess of LEDs in a charlieplexed arrangement
Check out the detailed tutorial for Arduino & CircuitPython support, pinouts, assembly, wiring, and more!
Technical Details
- Datasheets, EagleCAD PCB files, Fritzing objects and more in the tutorial
Product Dimensions: 43.3mm x 28.1mm x 2.4mm / 1.7" x 1.1" x 0.1"
Product Weight: 5.7g / 0.2oz
