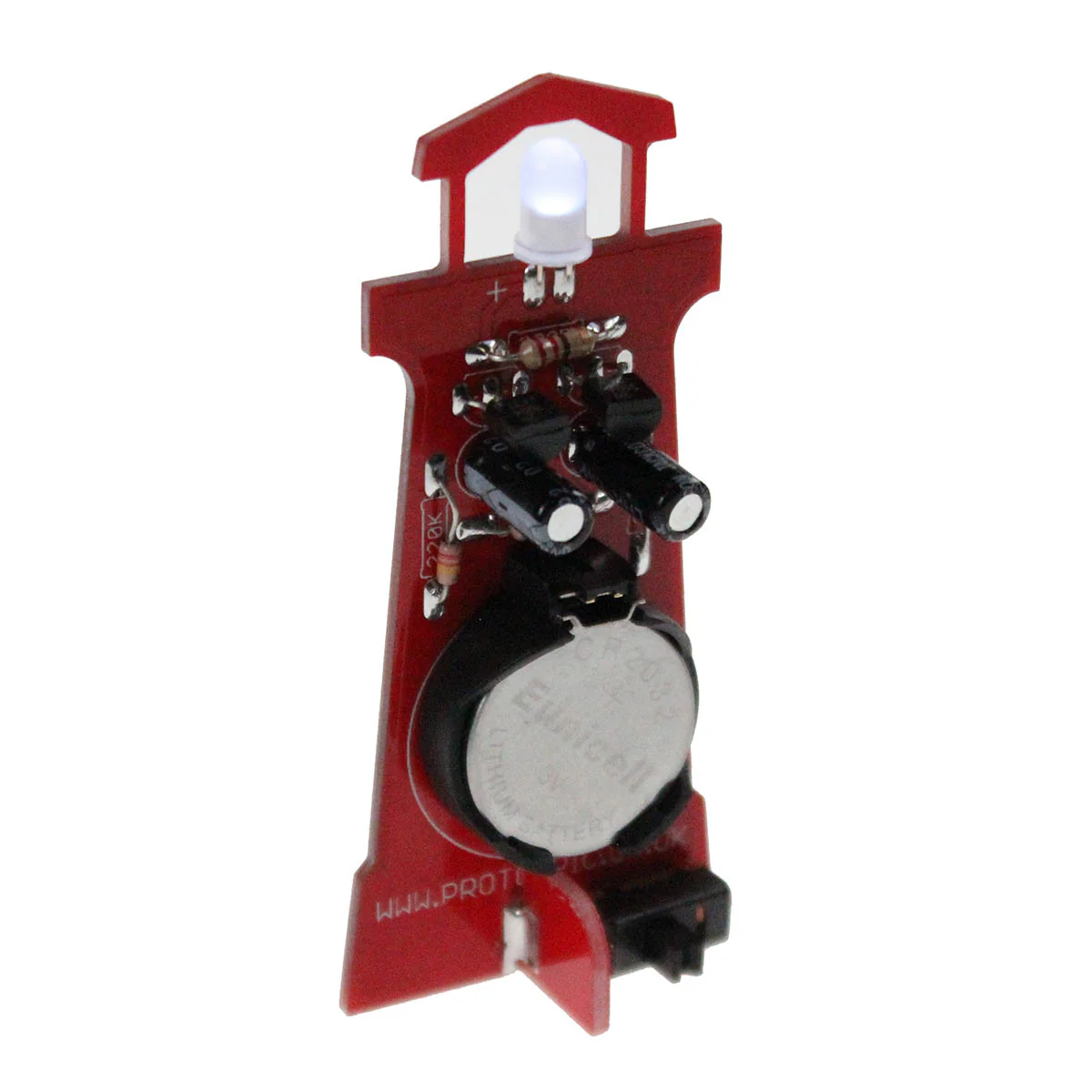

Lighthouse - beginners soldering kit

Try your hand at soldering or brush up on your soldering skills with this beginner-friendly lighthouse soldering kit!

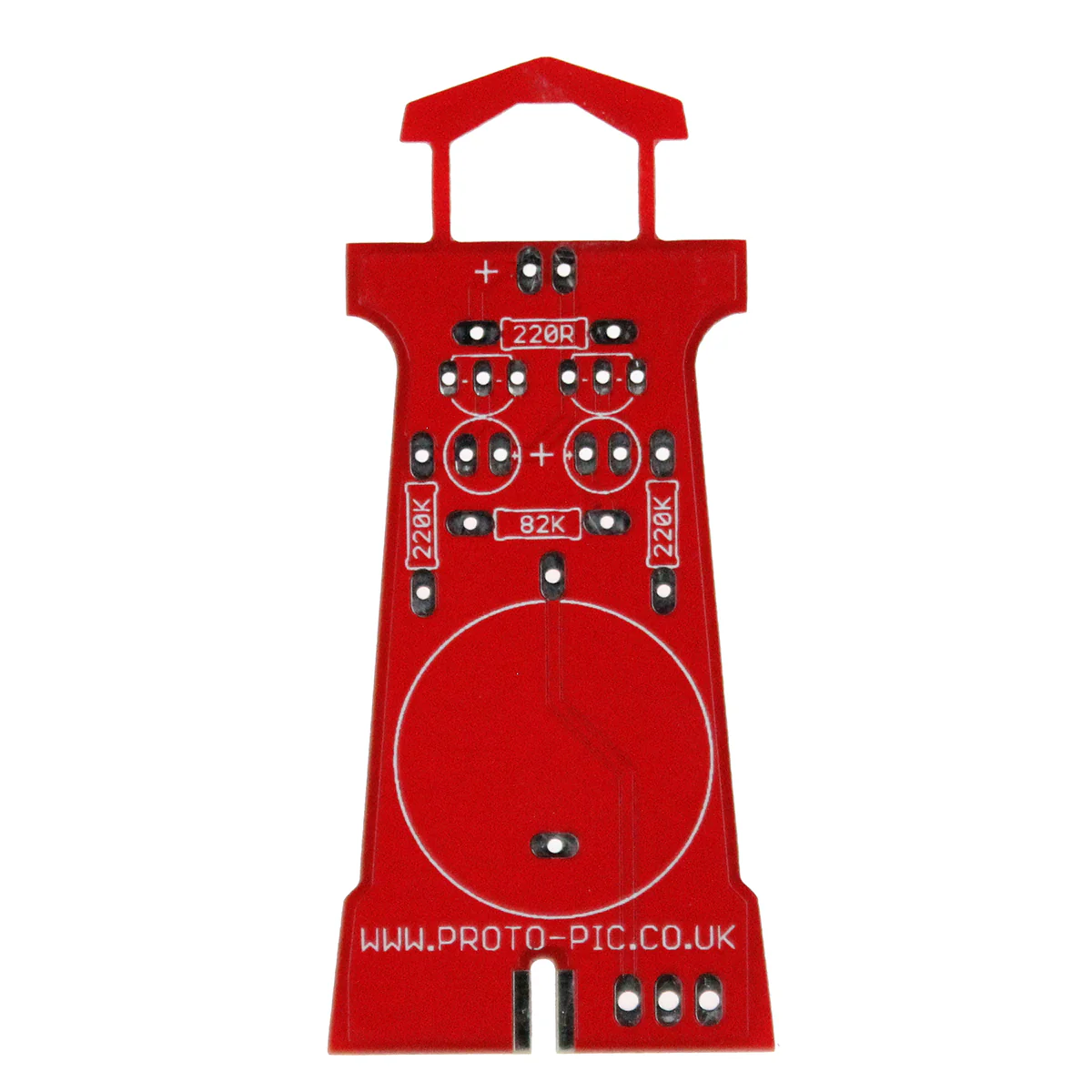

The PCB comes in 2 parts: the main PCB, where you solder the 11 components; and the base PCB, which slots into the bottom of the light house and (with a couple of blobs of solder) gives your lighthouse a strong and stable stand.

Once soldered, this kit will emulate an Isophase lighthouse - but fear not all you lovers of Occulting lighthouses! By changing the value of the resistors you can change the flashing pattern.

Please note: Battery not included

What you will need:

• A soldering Iron
• Solder
• Flush cutters
• Eye protection, flying legs can hurt!
• 1 x CR2032 Battery

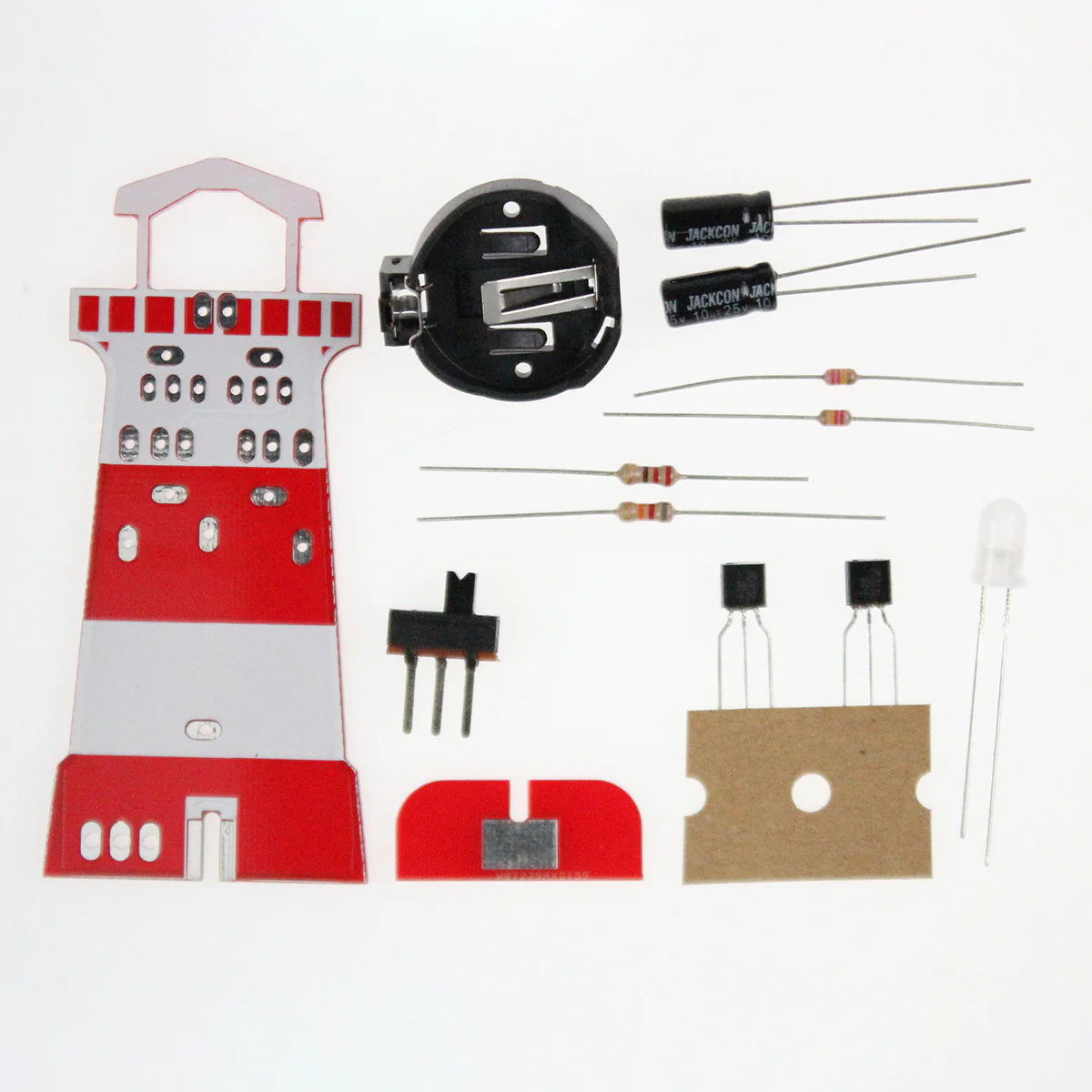

Kit contains:

• 1 x 220 ohm resistor ( Red, Red, Black)
• 1 x 82k ohm resistor (Grey, Red, Orange)
• 2 x 220k ohm resistors (Red, Red, Yellow)
• 2 x 2N3904 NPN Transistors
• 1 x Power switch
• 1 x CR2032 battery holder (battery not included)
• 2 x 10uF Capacitors
• 1 x Lighthouse PCB
• 1 x Stand PCB
• 1 x White LED

Documentation:

• Step by Step guide

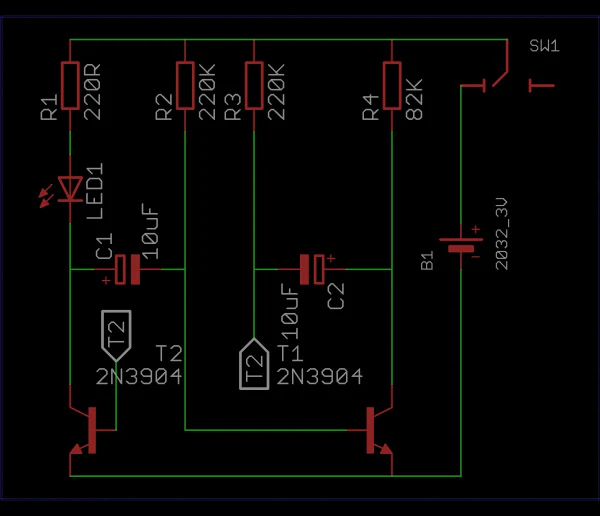

Want to know how this works? It's a bistable multivibrator (or flip-flop!): https://en.wikipedia.org/wiki/Multivibrator
