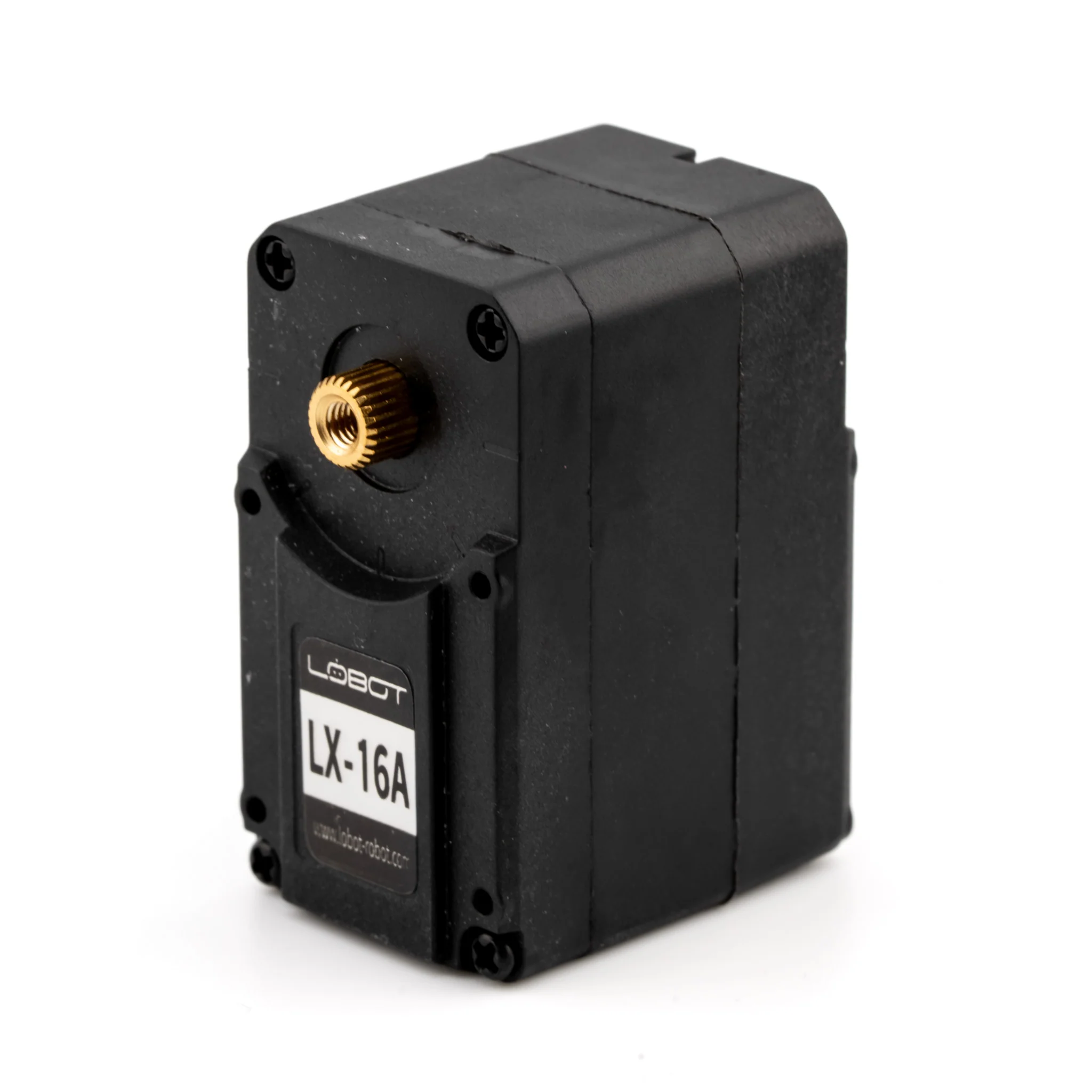

LX-16A 7.4V Metal Gear Serial Servo

These clever serial bus servos can provide a maximum torque of 17kg/cm (at 7.4V) and are designed to be chained and driven in series. They can provide real-time feedback (position, temperature and voltage) to your robot or microcontroller.

It comes with a bunch of mounting brackets and hardware suitable for connecting multiple servos together.

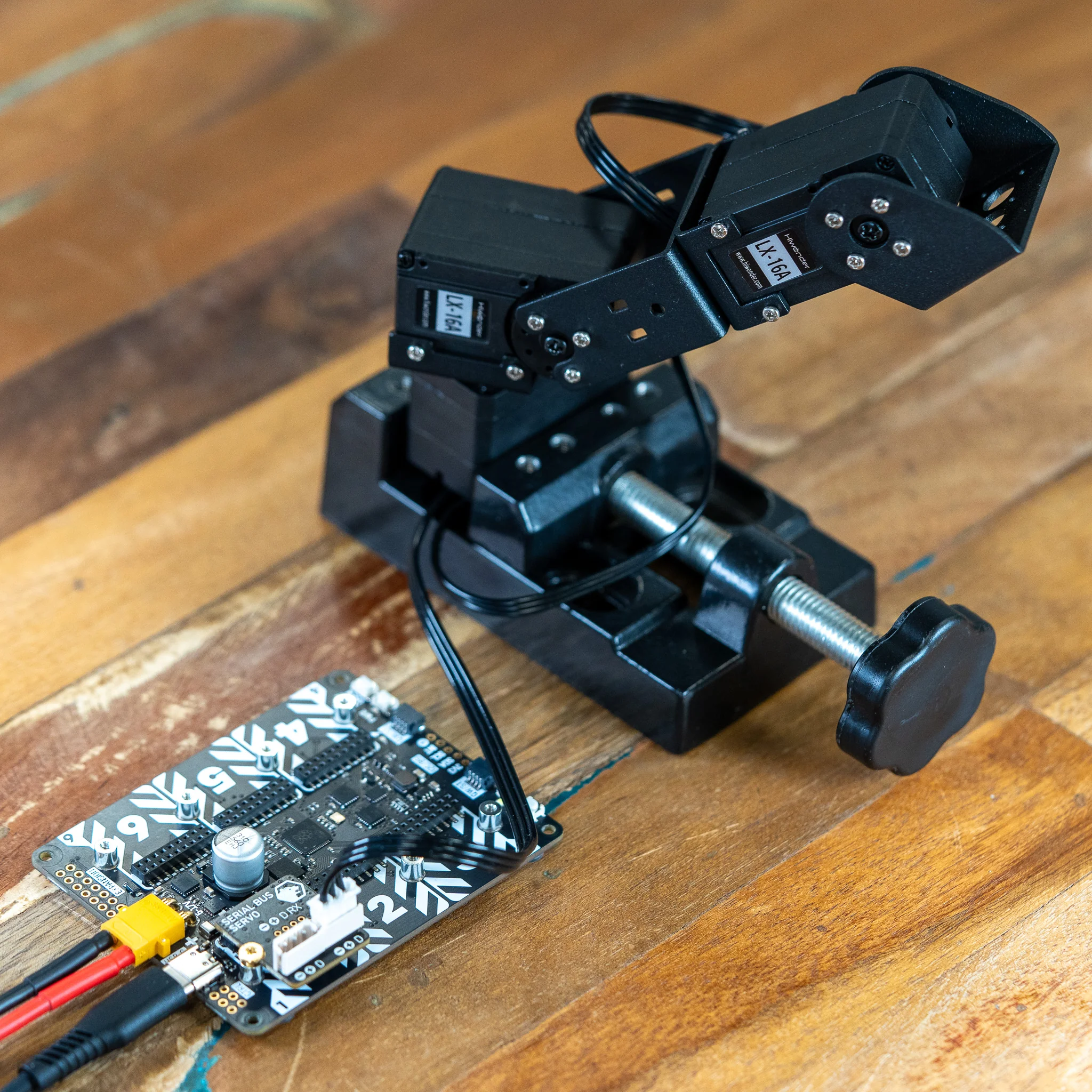

Looking for a versatile, all-in-one controller to connect your chain of smart servos up to? Check out Pimoroni Yukon and its Serial Servo Module!

Serial servos are sold singly.

Specifications

Weight	54g
Dimensions (mm)	45 x 25 x 36
Working voltage	6-8V
Speed	0.19sec / 60° at 7.4V
Servo Accuracy	0.3°
Torque (kg/cm)	17 at 6V; 19.5 at 7.4V
Rotation	0°-240°
Minimum Working Current	1A
No-load Current	100mA
Stall Current	2.4-3A
Control Range	0-1000 corresponds to 0°-240°
Control Method	UART serial command
Communication Baud Rate	115200

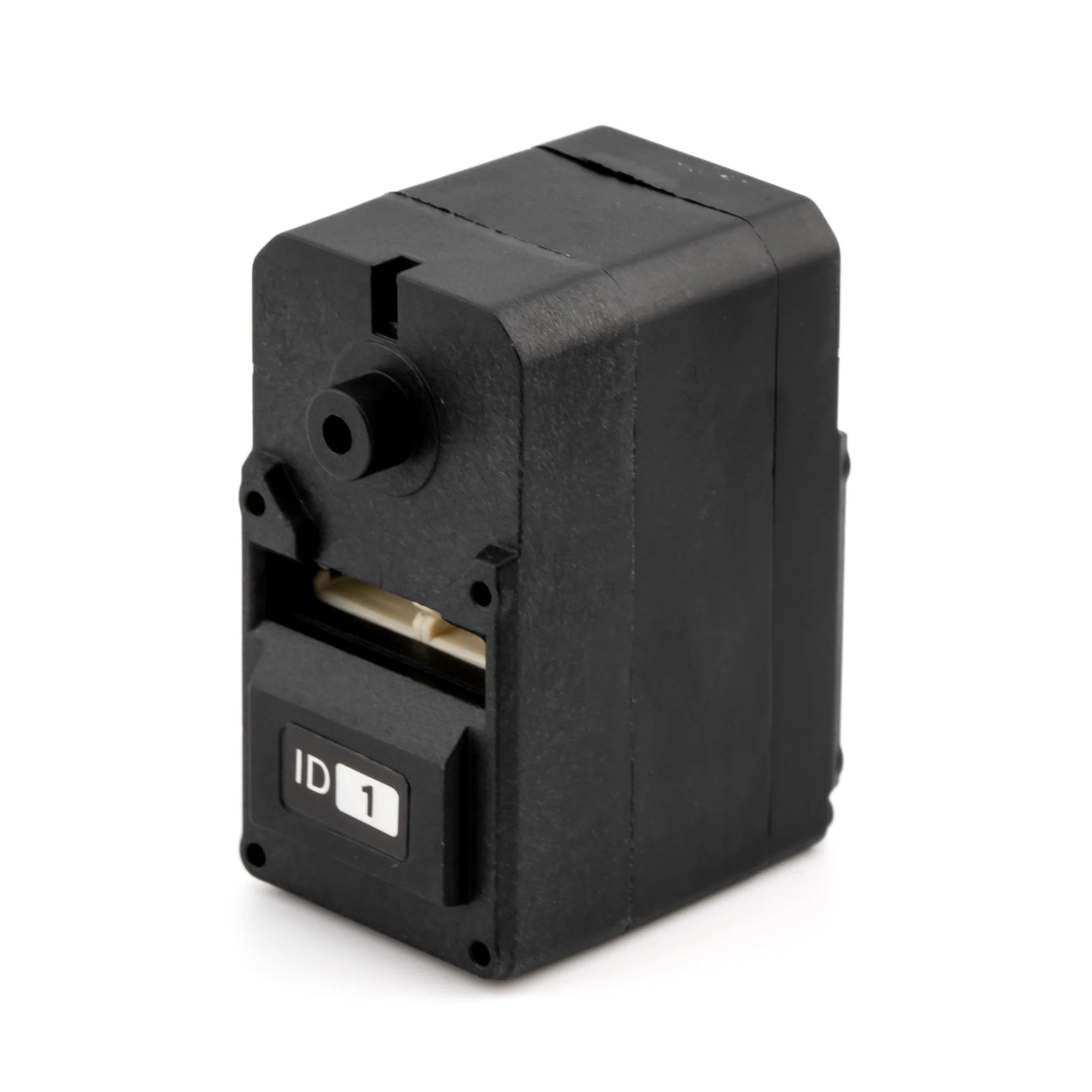

Servo ID	0-253, user configurable, default ID 1
Data Feedback	Temperature, voltage, position
Features	Stall protection, overheat protection, readback function
Indicator	Blue LED
Cable length	20cm
Includes	1 x bus servo 2 x servo horn 1 x main screw 1 x deputy screw 15 x M2*4 self-tapping screw 20cm servo wire 1x bottom bracket 1x inclined U-shape bracket 1x side bracket 1x straight U-shaped bracket
