Micro 180° Angular Rotation Servo (FS90)

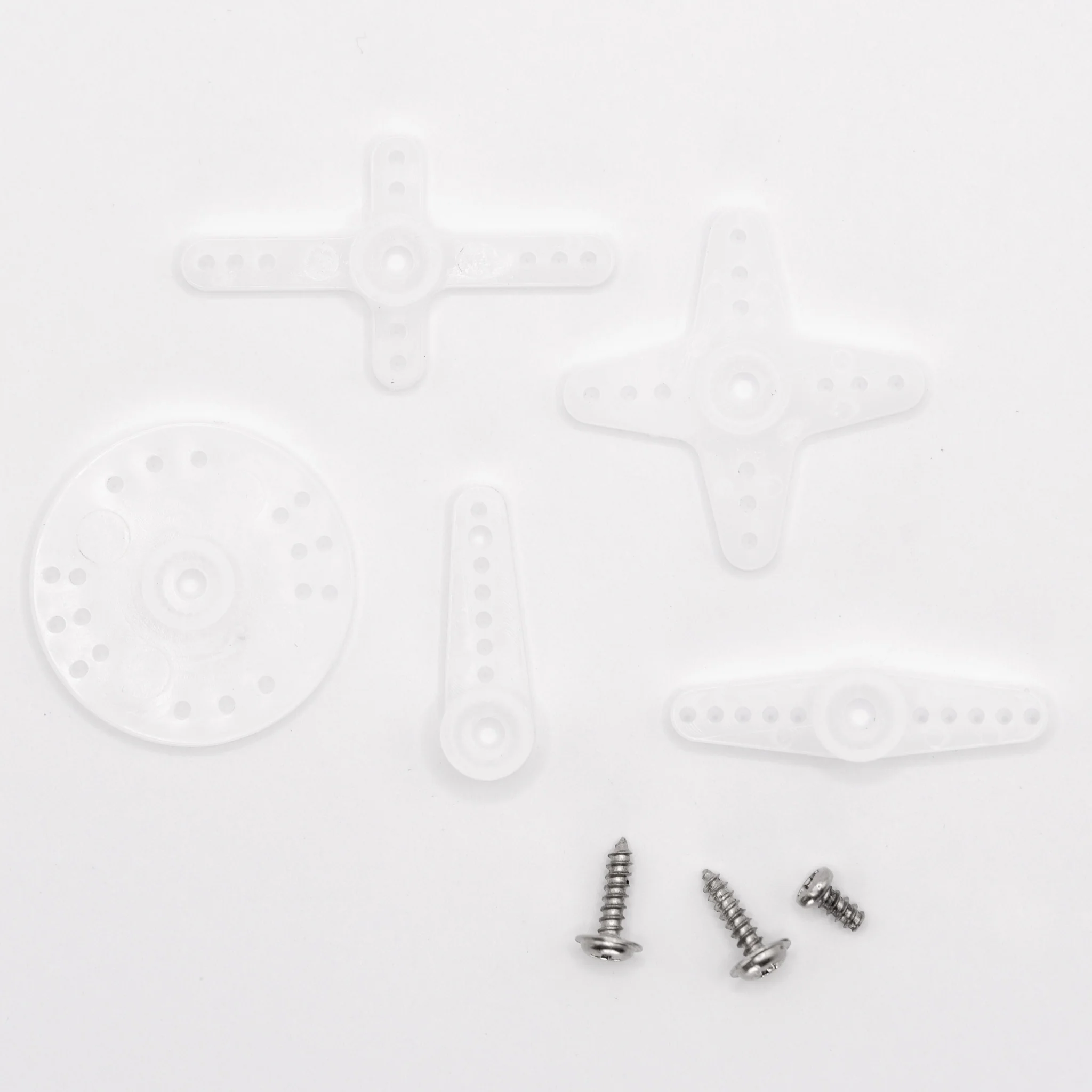

An analog micro servo motor, ideal for adding precise movement to your microcontroller and robotics projects. Comes with a selection of servo horns.
Looking for a servo controller? Check out Servo 2040 and Inventor 2040 W!
| Dimensions: | 22.5 x 12.1 x 22.4mm |
| Weight: | 9g |
| Operating voltage: | 4.8 to 6V |
| Operating speed: | 4.8V: 0.12sec/60degree 6V: 0.10sec/60degree |
| Peak stall torque: | 4.8V: 1.3kg/cm 6V: 1.5kg/cm |
| Operating angle: | 120° (900～2100 μsec) 180° (500～2500 μsec) |
| Control system: | Analog |
| Rotating direction: |
CW (1500～900 μsec) CCW (1500～2100 µsec) |
| Required pulse: | 900～2100 μsec |
| Bearing type: | None |
| Gear type: | Plastic |
| Motor type: | Metal |
| Connecting wire length: | 25 cm, approx |
| Datasheet | link |
Pinout
- Red: Power / VIN
- Orange: Signal / data
- Brown: Ground
$1.29
Original: $4.29
-70%Micro 180° Angular Rotation Servo (FS90)—
$4.29
$1.29Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
An analog micro servo motor, ideal for adding precise movement to your microcontroller and robotics projects. Comes with a selection of servo horns.
Looking for a servo controller? Check out Servo 2040 and Inventor 2040 W!
| Dimensions: | 22.5 x 12.1 x 22.4mm |
| Weight: | 9g |
| Operating voltage: | 4.8 to 6V |
| Operating speed: | 4.8V: 0.12sec/60degree 6V: 0.10sec/60degree |
| Peak stall torque: | 4.8V: 1.3kg/cm 6V: 1.5kg/cm |
| Operating angle: | 120° (900～2100 μsec) 180° (500～2500 μsec) |
| Control system: | Analog |
| Rotating direction: |
CW (1500～900 μsec) CCW (1500～2100 µsec) |
| Required pulse: | 900～2100 μsec |
| Bearing type: | None |
| Gear type: | Plastic |
| Motor type: | Metal |
| Connecting wire length: | 25 cm, approx |
| Datasheet | link |
Pinout
- Red: Power / VIN
- Orange: Signal / data
- Brown: Ground
