13.56MHz RFID/NFC Clear Tag - Classic 1K

This is a blank 13.56MHz Classic 'laundry' tag - often used for laundry or identification but also found in other systems where a small proximity card is desired.

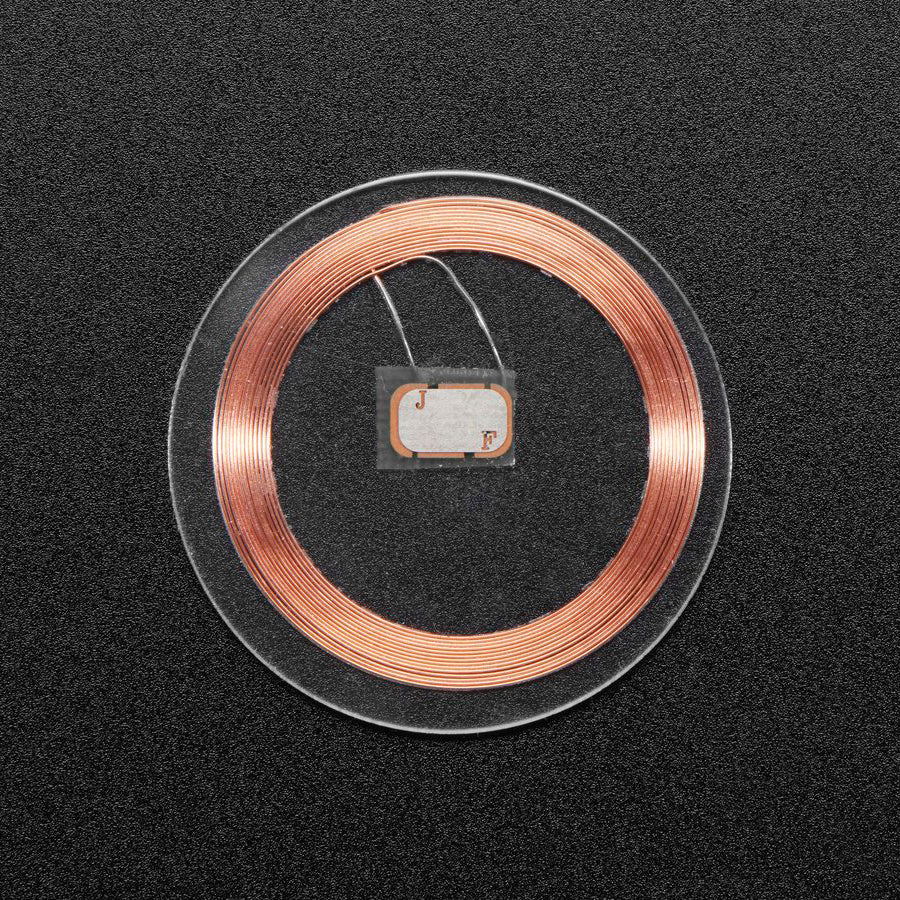

This one is clear!  The tag contains a small RFID chip and an antenna, and is passively powered by the reader/writer when placed a couple inches away.

These can be read by almost any 13.56MHz RFID/NFC reader but make sure it can handle ISO/IEC 14443 Type A cards as there are a few other encoding standards (like FeLica) They are tested and work great with both our PN532 NFC/RFID breakout board and Adafruit NFC/RFID Shield for Arduino!

These chips can be written to & store up to 1 KB of data in writable EEPROM divided into banks, and can handle over 100,000 re-writes. You can use our PN532 NFC/RFID breakout board or Adafruit NFC/RFID Shield for Arduino to read and write data to the EEPROM inside the tag. There is also a permanent 4-byte ID burned into the chip that you can use to identify one tag from another - the ID number cannot be changed.

These use a ISO/IEC 14443 Type A chipset, which used to be the 'classic' NFC chipset. In ~2014, the NFC forum decided not to support this chipset anymore, so newer phones do not support it. This only matters if you're trying to use this tag with a phone/tablet.

TECHNICAL DETAILS

RFID chip specification:

• 1 KiloByte (8 KiloBit) non-volatile EEPROM storage
• Built in encryption engine with 48-bit key
• 4 Byte unique identifier burned into the chip
• 13.56 MHz frequency

Tag specification:

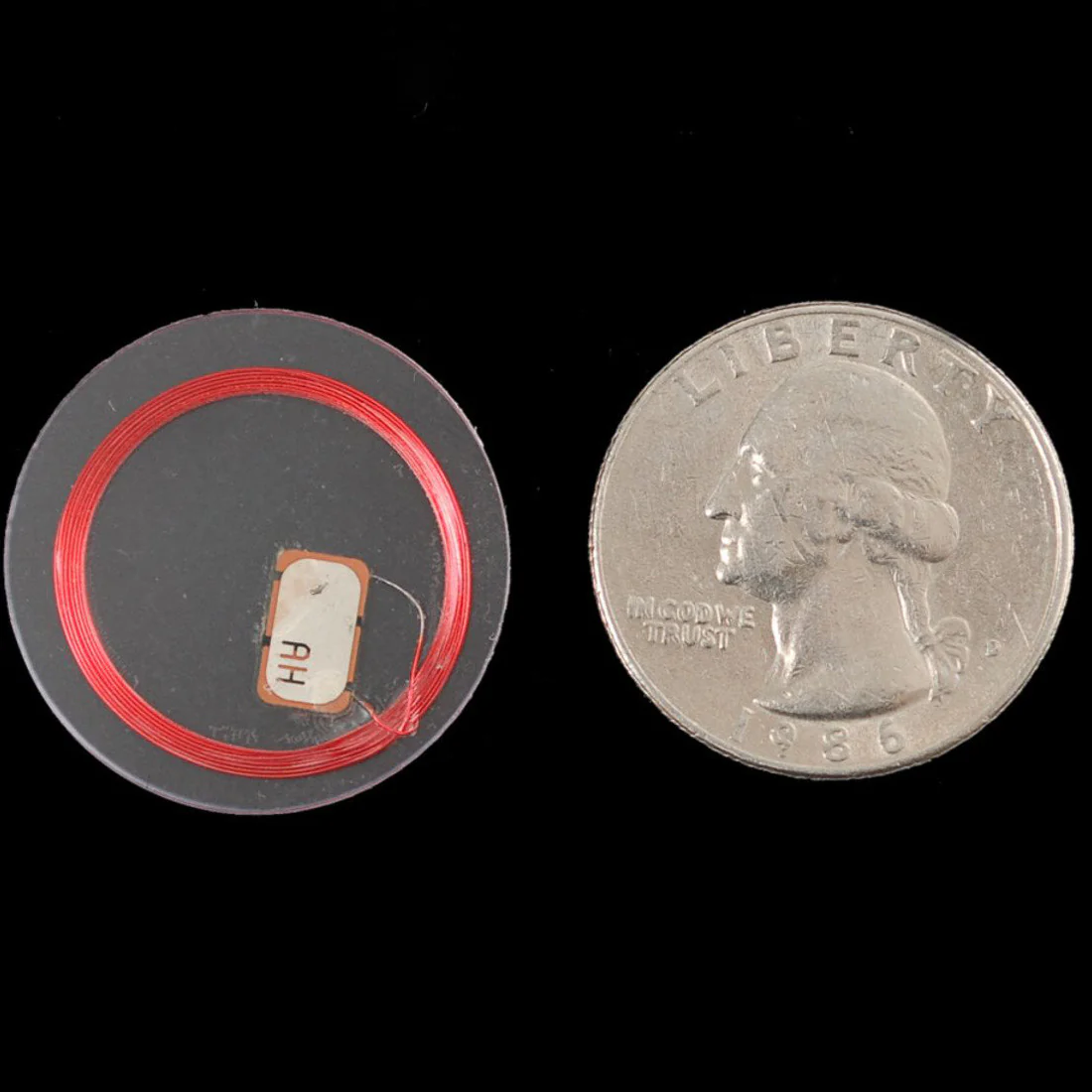

• 25.4mm diameter x 1mm / 1" diameter x 0.03"
• 0.9 grams / 0.03 oz
• Works about 2" away from reader
