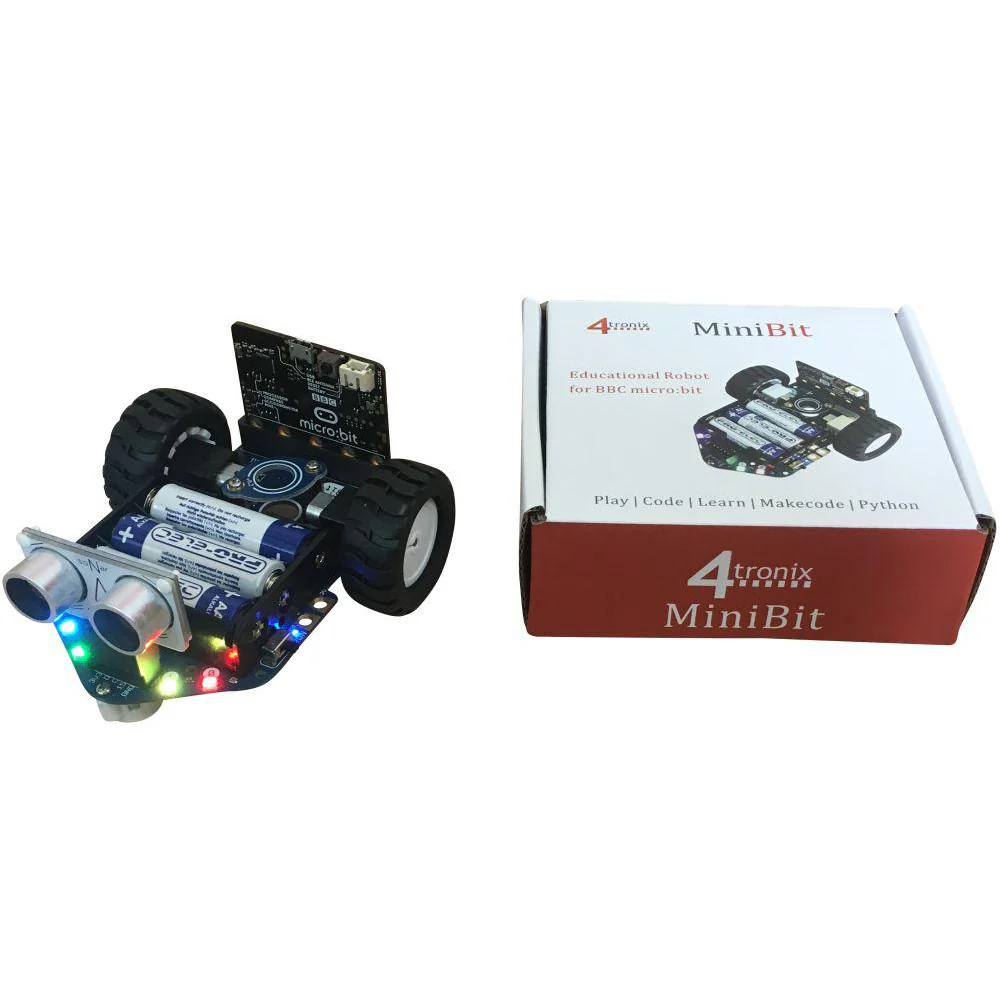

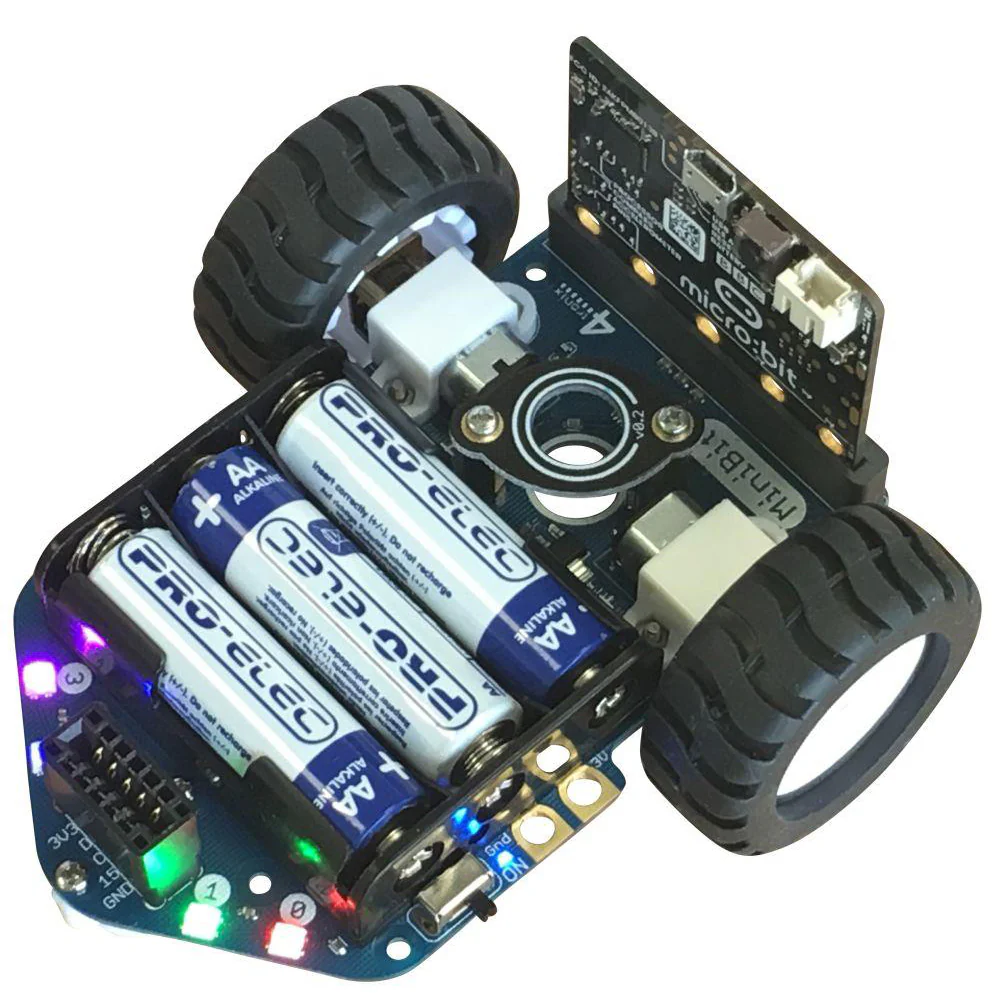

Minibit Robot for micro:bit

Easy, simple and ready-to-go robot for your BBC micro:bit

NB. micro:bit is NOT included.

The Minibit is the younger sibling of the popular and well-loved Bit:Bot. It comes ready-built (wheels need pushing on, and the pen holder top part can be screwed on if required).

A Makecode extension is available - just search for Minibit in the Advanced/Extensions tab. Blocks available for driving the motors, LEDs and optional ultrasonic sensor.

Check out these features:

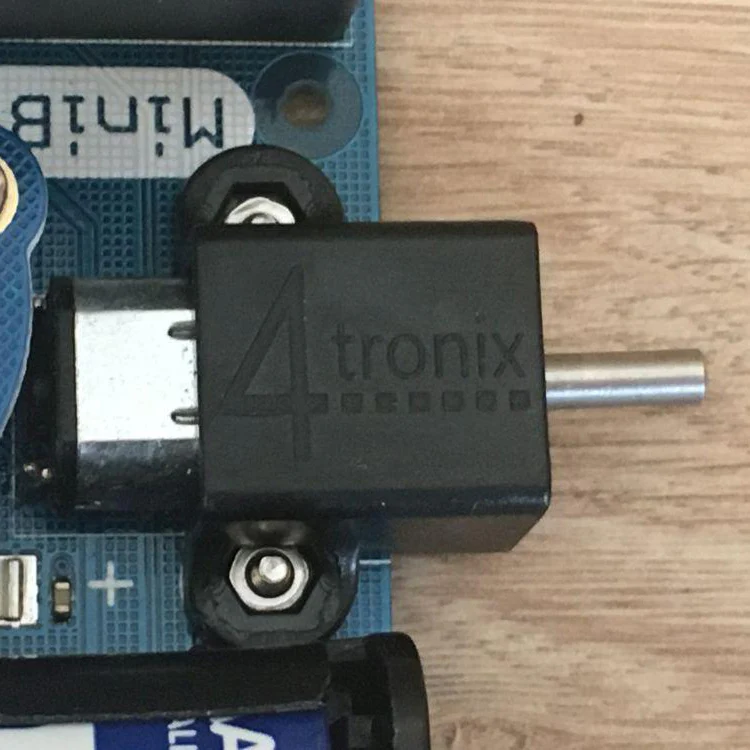

• 2 micro-metal gear motors. Both fully controllable in software, for both speed (0 to 100%) and direction (forward or reverse)
• Fully enclosed gearboxes to minimise the ingress of dust and fluff
• Wheels with rubber tyres for maximum grip
• Metal ball front caster
• 4 "Smart RGB" LEDs along the front. Select any colour for any pixel, produce stunning lighting effects as your Minibit moves around
• Integrated pen holder sits directly between the wheels for best operation. Designed for Sharpie felt tips but any pen with 10mm end shaft will fit
• Powered from integrated 3xAA battery holder with on/off switch and blue indicator LED
• Easily plug your micro:bit in and out using the edge connector
• micro:bit pins 0, 1, 2 as well as 0V and 3V brought to croc-clip friendly edge connections
• Robust connector for optional Ultrasonic sensor (and other possible addins)

NB. Batteries, micro:bit and ultrasonic sensor NOT included
