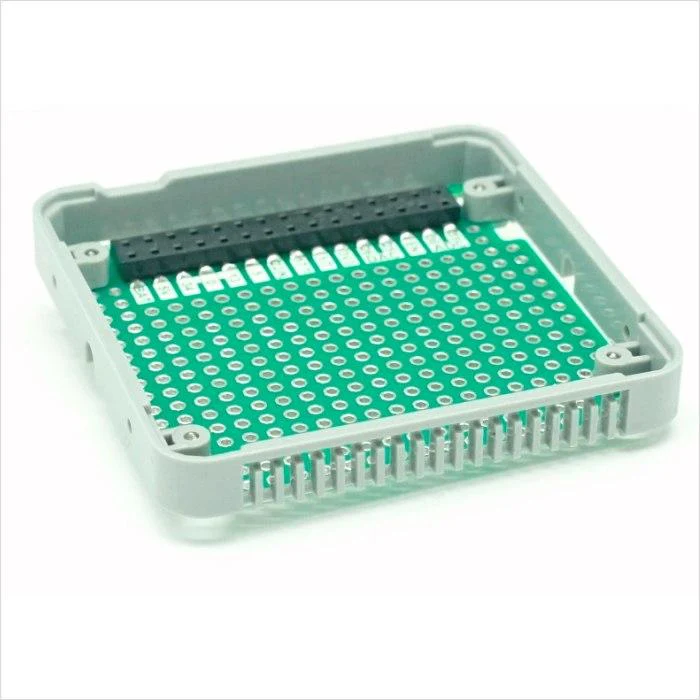

M5Stack Proto Module with Extension & Bus Socket
A stackable universal prototyping module for use with M5Stack Core development boards.
For more information and for help getting started, click here
Product Features
- Hole Size: 0.039" 1mm (CNC Drilled)
- Hole Pitch: 0.1 in - (2.54 mm)
- Entire Hole Quantity: 260 Holes
- Product Size：54.2mm x 54.2mm x 12.8mm
- Product weight：11.5g

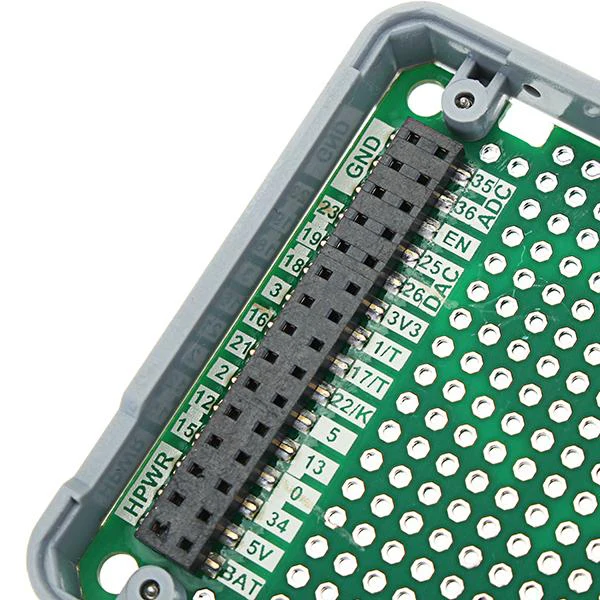

Interface
| LINE0 | LINE1 |
|---|---|
| GND | IO35(ADC1) |
| GND | IO36(ADC2) |
| GND | EN |
| IO23(MOSI) | IO25(DAC0) |
| IO19(MISO) | IO26(DAC1) |
| IO18(EXT_SCK) | 3V3 |
| IO3(U1_RX) | IO1(U1_TX) |
| IO16(U2_RX) | IO17(U2_TX) |
| IO21(I2C_SDA) | IO22(I2C_SCL) |
| IO2 | IO5 |
| IO12(I2S_SCLK) | IO13 |
| IO15(I2S_OUT) | IO0 |
| HPOWR | IO34 |
| HPOWR | 5V |
| HPOWR | BAT |
