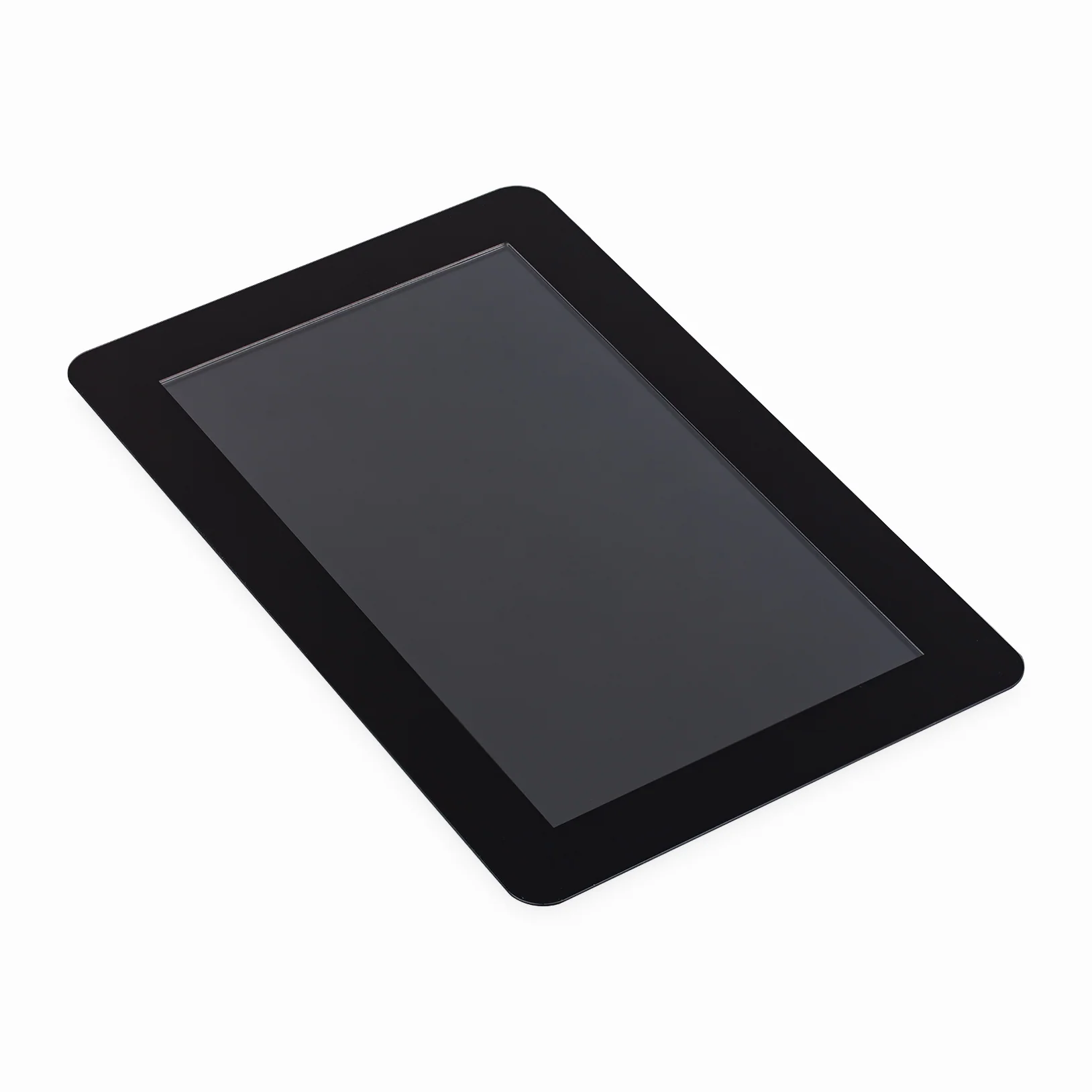

Raspberry Pi Touch Display 2 - 7"

A 7" portrait touchscreen display for Raspberry Pi, for interactive projects like tablets, entertainment systems and information dashboards.

The latest version of Raspberry Pi OS provides touchscreen drivers with support for five-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse. Powered from your Raspberry Pi; no separate power supply is required.

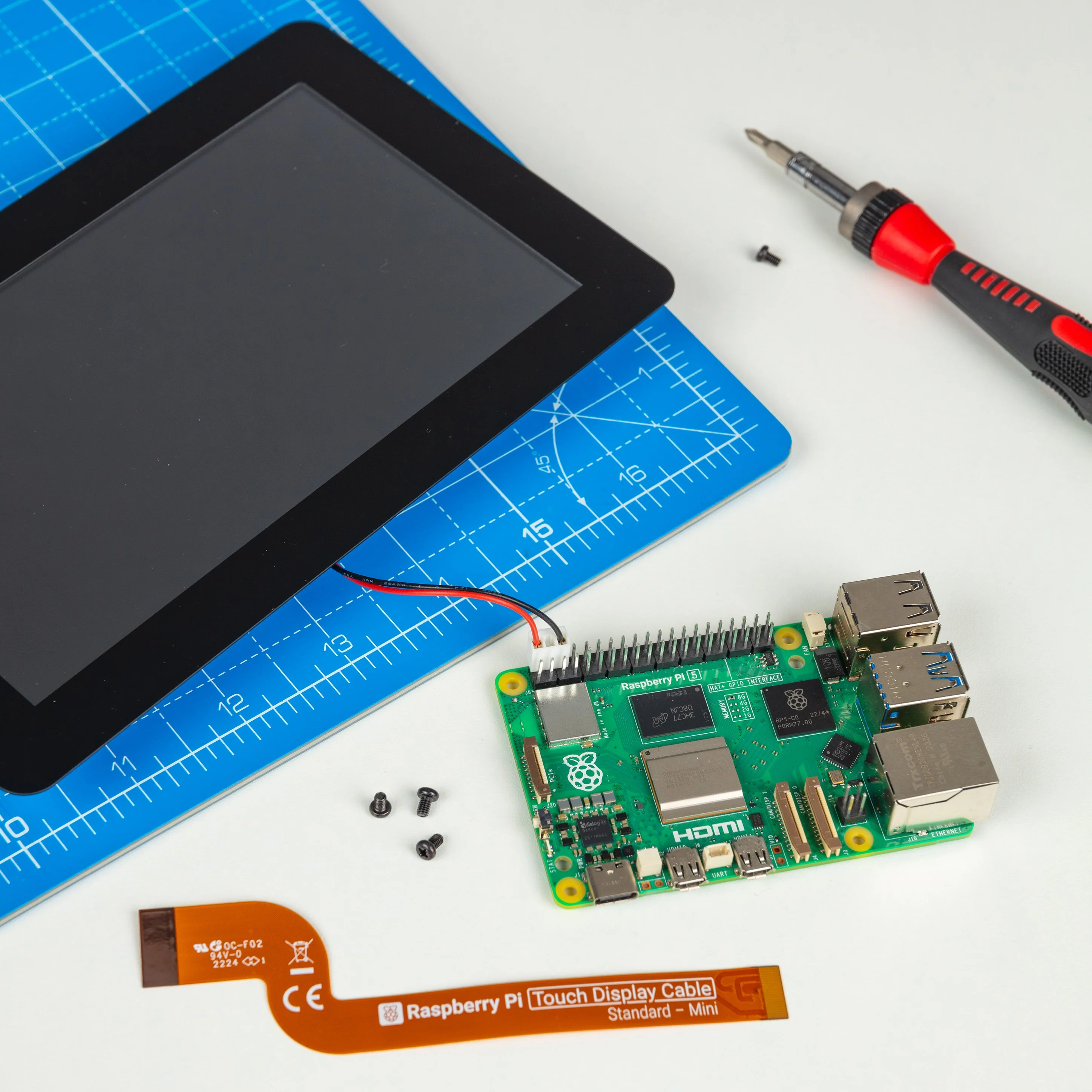

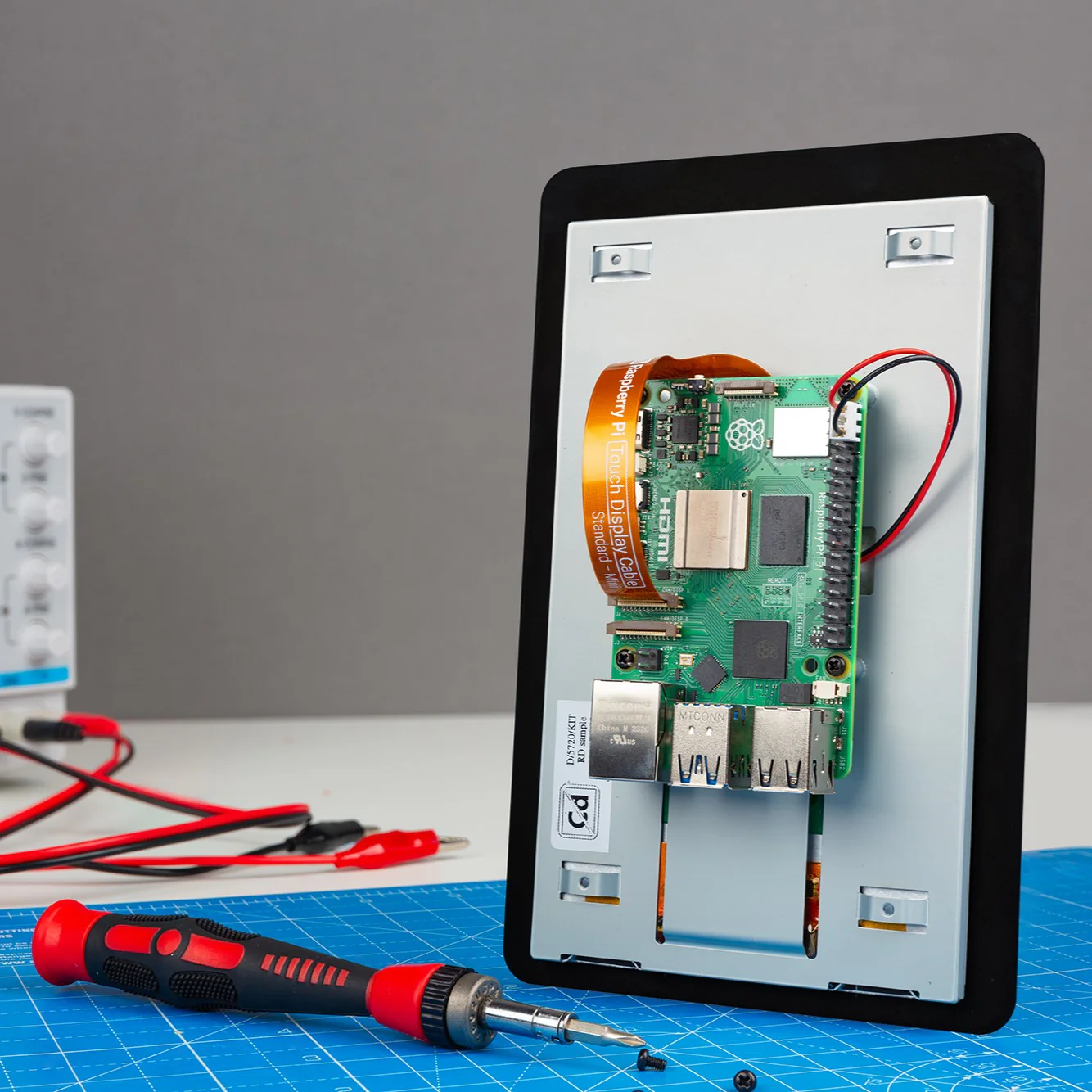

Touch Display 2 is compatible with all Raspberry Pi computers from Raspberry Pi 1B+ onwards, except for the Raspberry Pi Zero series which lack the necessary DSI port. It attaches securely to your Raspberry Pi with four screws, and ships with power and data cables compatible with both standard and mini FPC connector formats.

Contents

• Touch display
• Power cable
• Standard-mini ribbon cable (for use with Raspberry Pi 5)
• Standard-standard ribbon cable (for use with other versions of Raspberry Pi with a full-size DSI port)
• M2.5 screws to attach your Raspberry Pi to back of the display

Raspberry Pi is not included (but you can buy one here)

Features

• Display size (diagonal): 7 inches
• 85-degree viewing angle
• Display format: 24-bit RGB, 720 x 1280 pixels
• Display active area: 155mm x 88mm
• Touch panel: True multi-touch capacitive panel, supporting five-finger touch
• Compatible with all Raspberry Pi computers from Raspberry Pi 1B+ onwards (except for the Raspberry Pi Zero series).

Getting Started

• Install guide
• Product brief
• Launch blog post

Note that you will need to be running the latest version of Raspberry Pi OS (Bookworm) for the screen to be autodetected. Make sure everything's up to date by opening up a terminal (Ctrl-Alt-T) and running

sudo apt update && sudo apt full-upgrade
